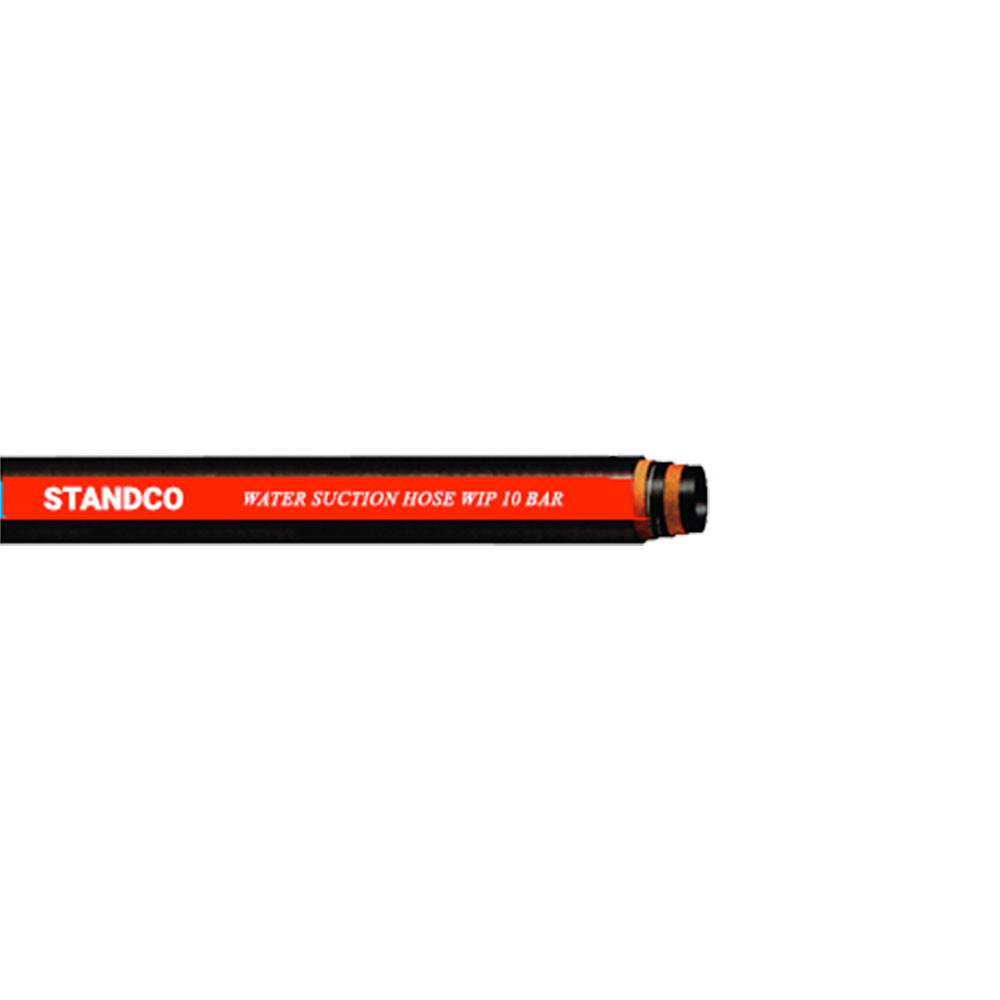

Water Suction Hose

Common Applications:

A Medium duty suction hose suitable for use in agriculture, construction and mining industries. This hose is suitable for water and light slurry transfer in both negative and positive pressure applications.

Tube:

Black SBR / NR rubber.

Reinforcement:

Piles of high strength polyester cord incorporating a steel wire helix.

Cover:

Black SBR / EDPM rubber, wrapped surface, abrasion and weather resistant.

Branding:

With Blue/White Standco stripe.

Temperature Range:

-20°C to +70°C.

Safety Factor:

3:1

Description

Product Code	Nominal Inch	I.D.	O.D.	W.P		C.L	List Price (RM/mt)
Product Code	Nominal Inch	mm	mm	BAR	PSI	mt	List Price (RM/mt)
RWS 1025	1	25.4	36.0	10	150	30
RWS 1032	1¹/₄	32.0	43.0	10	150	30
RWS 1038	1¹/₂	38.0	49.0	10	150	30	119.20
RWS 1050	2	51.0	63.0	10	150	30	141.40
RWS 1065	2¹/₂	64.0	77.0	10	150	30	203.00
RWS 1075	3	76.0	90.0	10	150	30	235.40
RWS 1090	3¹/₂	89.0	102.0	10	150	30
RWS 1100	4	102.0	118.0	10	150	30	365.40
RWS 1150	6	153.0	170.0	10	150	30
