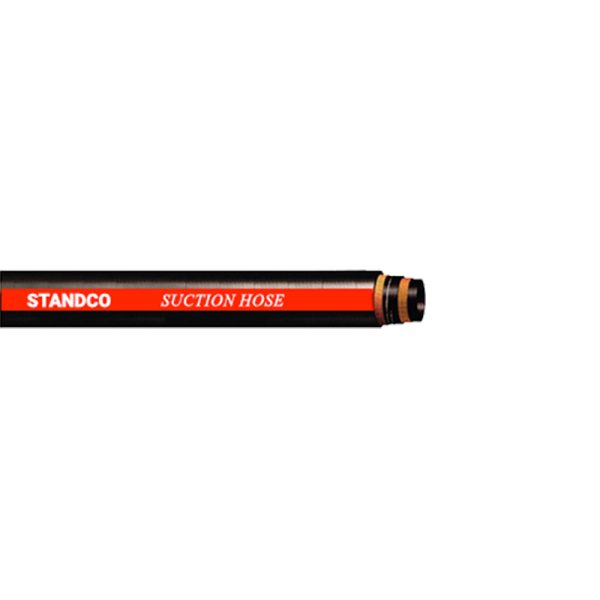

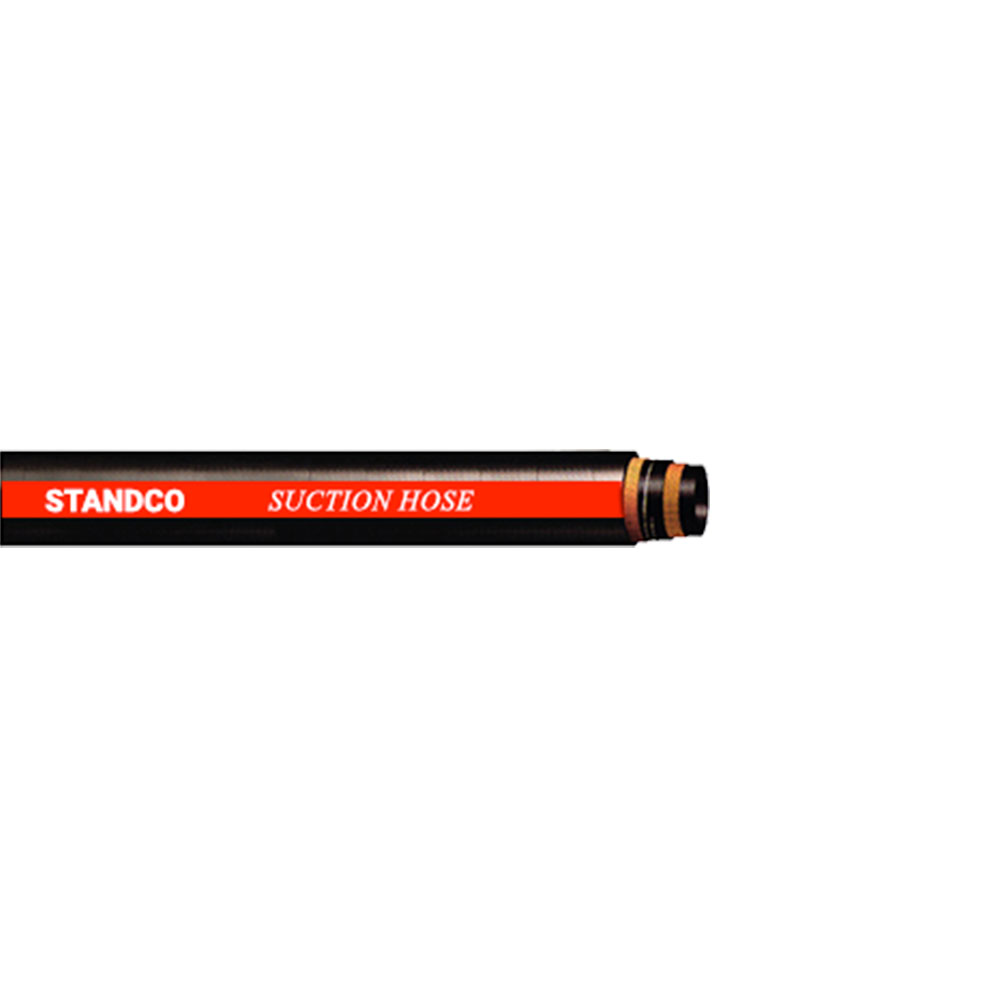

Suction Hose

Common Applications:

Highly flexible rubber hose suitable for the transfer of water in negative pressure applications. 6 / 7.5 meter lengths incorporation for ease to handle.

Tube:

Black SBR / NR rubber.

Reinforcement:

Piles of high strength polyester cord incorporating a steel wire helix.

Cover:

Black SBR / EDPM rubber, wrapped surface, abrasion and weather resistant.

Temperature Range:

-20°C to +70°C.

Safety Factor:

3:1

Description

Product Code	Nominal Inch	I.D.	O.D.	W.P		C.L	List Price (RM/mt)
Product Code	Nominal Inch	mm	mm	BAR	PSI	mt	List Price (RM/mt)
RWS 3100/20	4	102.0	117.0	5	70	6.0
RWS 3100/25	4	102.0	117.0	5	70	7.5
RWS 3150/20	6	152.0	170.0	5	70	6.0
RWS 3150/25	6	152.0	170.0	5	70	7.5
RWS 3200/20	8	204.0	224.0	5	70	6.0
RWS 3200/25	8	204.0	224.0	5	70	7.5
