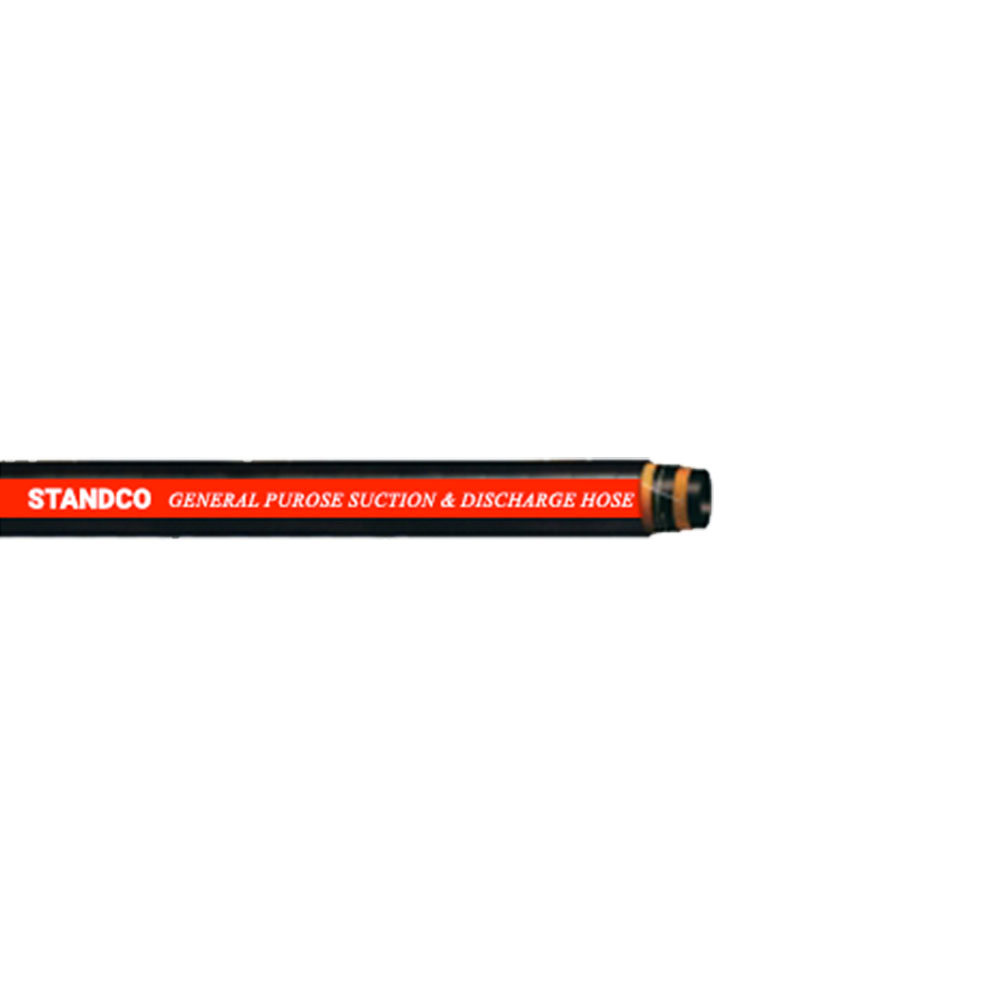

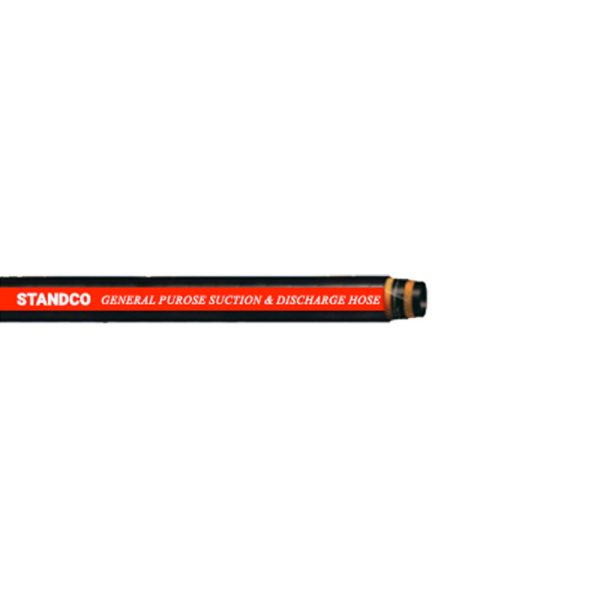

General Purpose Suction & Discharge Hose (EPDM)

Common Applications:

Hardwall hose designed to handle a wide range of chemical products, acids and bases. It is specially recommended to convey industrial waters and for usage in water purification systems.

Tube:

Black, smooth EPDM rubber.

Reinforcement:

High strength synthetic cord plus steel helix wire and anti-static wire.

Cover:

Black, smooth (wrapped finish), EPDM rubber, resistant to chemical products, abrasion, weather and ozone.

Branding:

With Green / White Standco stripe

Temperature Range:

-40°C to +100°C.

Safety Factor:

3:1

Description

Product Code	Nominal Inch	I.D.	O.D.	W.P		C.L	List Price (RM/mt)
Product Code	Nominal Inch	mm	mm	BAR	PSI	mt	List Price (RM/mt)
RCS 3025	1	25.4	37.0	10	30	30 / 60
RCS 3032	1¹/₄	32.0	44.0	10	30	30 / 60
RCS 3038	1¹/₂	38.0	51.0	10	30	30 / 60
RCS 3050	2	50.8	65.0	10	30	30 / 60
RCS 3075	3	76.2	92.0	10	30	30 / 60
RCS 3100	4	101.6	120.0	10	30	30 / 60
