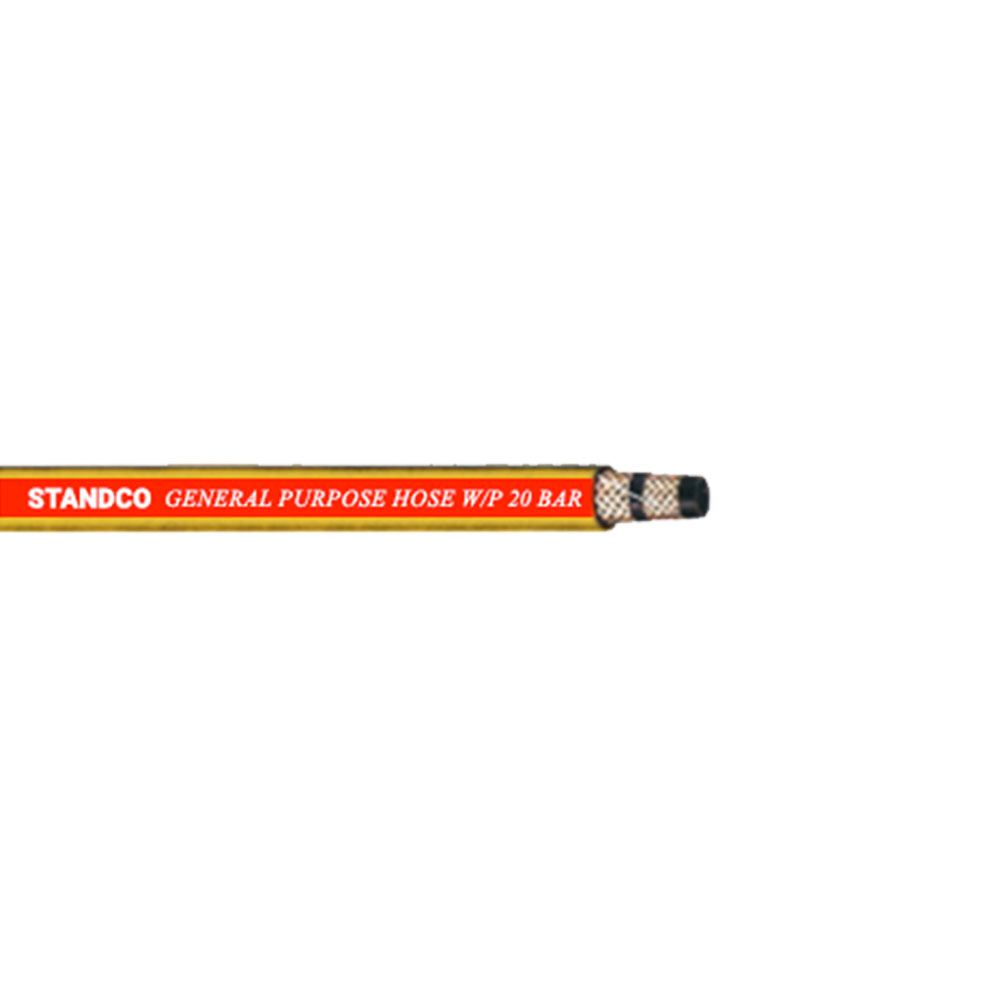

General Purpose Hose

Common Applications:

A good quality, general purpose hose for industrial and agricultural service, compressor lines, hot air & water, low pressure spray and many other light chemical application, one copper static wire is available.

Tube:

Black EPDM rubber, heat and chemical resistant rubber.

Reinforcement:

High strength polyester braided incorporating a copper anti-static wire.

Cover:

Yellow EPDM rubber, smooth surface, heat and chemical resistant.

Temperature Range:

-30°C to +100°C.

Safety Factor:

3:1

Description

Product Code	Nominal Inch	I.D.	O.D.	W.P		C.L	List Price (RM/mt)
Product Code	Nominal Inch	mm	mm	BAR	PSI	mt	List Price (RM/mt)
RCD 1006	¹/₄	6.4	14.0	20	300	100
RCD 1008	⁵/₁₆	8.0	16.0	20	300	100
RCD 1010	³/₈	9.5	18.0	20	300	100
RCD 1013	¹/₂	12.7	22.0	20	300	100
RCD 1016	⁵/₈	16.0	26.0	20	300	100
RCD 1019	³/₄	19.0	30.0	20	300	100
RCD 1025	1	25.4	36.0	20	300	60
