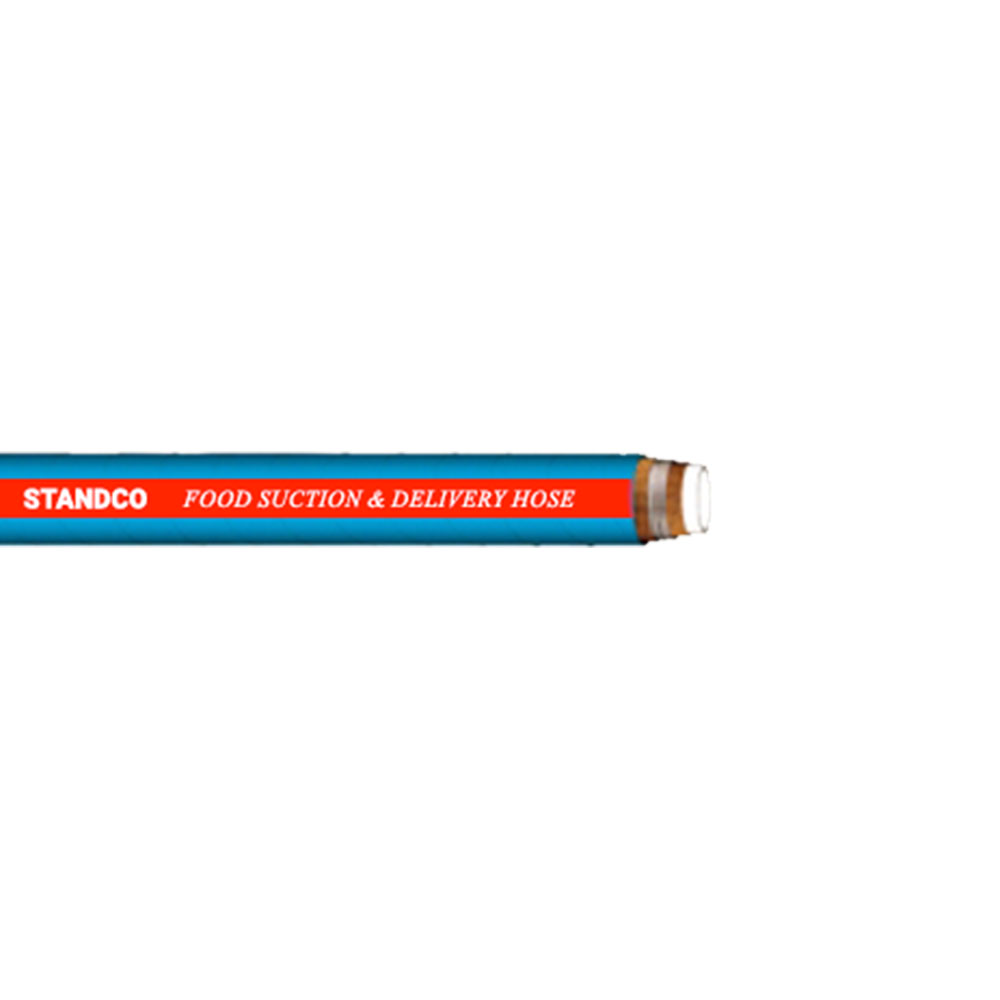

An image displaying a versatile Food Suction & Delivery Hose, ideal for the handling of fatty foods, designed to meet the stringent requirements of the food industry.

Food Suction & Delivery Hose (Fatty Foods)

Common Applications:

Hardwall hose for suction and delivery of food products, particularly suitable for oily and fatty foods. (Max 110°C for a few minutes with steam; max 30°C for a few minutes with 1% peracetic acid, 2% phosphoric acid, 5% caustic soda.)

Tube:

White, smooth, F.D.A. approved NBR rubber.

Reinforcement:

High strength synthetic cord and helix wire.

Cover:

Blue, (wrapped finish), NBR rubber, fat and ageing resistant.

Branding:

With Purple/White Standco stripe

Temperature Range:

-35°C to +80°C

Safety Factor:

3:1

Description

Product Code	Nominal Inch	I.D.	O.D.	W.P		C.L	List Price (RM/mt)
Product Code	Nominal Inch	mm	mm	BAR	PSI	mt	List Price (RM/mt)
RFS 2025	1	19.0	37.0	10	30	30 / 60
RFS 2032	1¹/₄	32.0	44.0	10	30	30 / 60
RFS 2038	1¹/₂	38.0	51.0	10	30	30 / 60
RFS 2050	2	50.8	65.0	10	30	30 / 60
RFS 2065	2¹/₂	63.5	79.0	10	30	30 / 60
RFS 2075	3	76.2	93.0	10	30	30 / 60
RFS 2100	4	101.6	120.0	10	30	30 / 60
