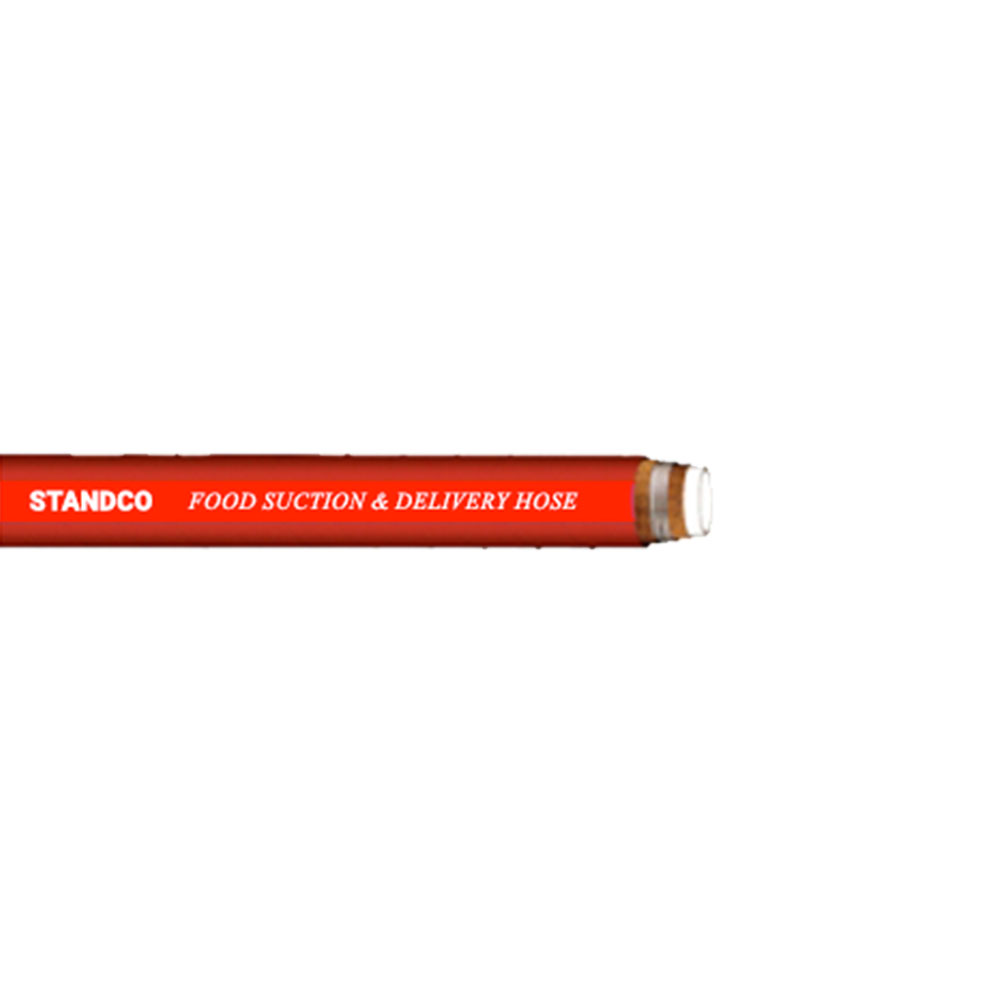

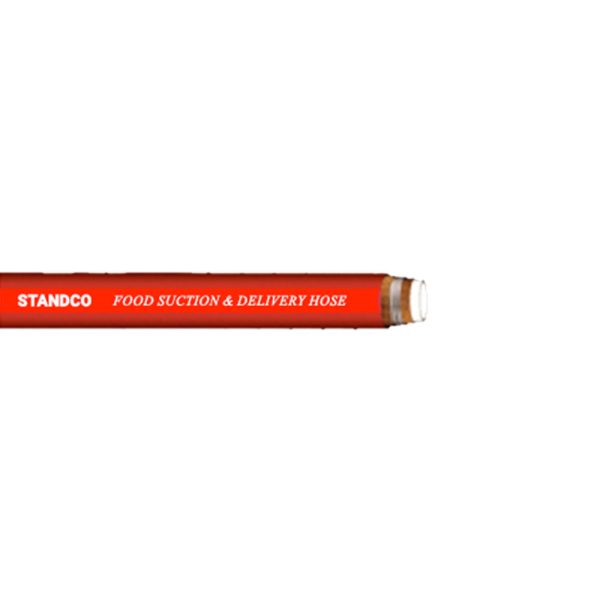

The image shows a Food Suction and Delivery Hose, tailored for the suction and delivery of non-fatty food liquids, ensuring optimal hygiene and performance in food service operations.

Food Suction and Delivery Hose (Non-Fatty Food Liquids)

Common Applications:

Hardwall hose for suction and delivery of water, wine, juice, soft drinks and other foodstuffs when a food quality hose is required. Not recommended for oily or fatty liquids.

Tube:

White, smooth, F.D.A, approved EPDM rubber.

Reinforcement:

High strength synthetic cord and helix wire.

Cover:

Oxred, (wrapped surface), EPDM rubber, weather resistant.

Branding:

With Purple/White Standco stripe

Temperature Range:

-35°C to +100°C

Safety Factor:

3:1

Description

Product Code	Nominal Inch	I.D.	O.D.	W.P		C.L	List Price (RM/mt)
Product Code	Nominal Inch	mm	mm	BAR	PSI	mt	List Price (RM/mt)
RFS 1025	1	25.,4	37.0	10	30	30 / 60
RFS 1032	1¹/₄	32.0	44.0	10	30	30 / 60
RFS 1038	1¹/₂	38.0	51.0	10	30	30 / 60
RFS 1050	2	50.8	65.0	10	30	30 / 60
RFS 1065	2¹/₂	63.5	79.0	10	30	30 / 60
RFS 1075	3	76.2	92.0	10	30	30 / 60
RFS 1100	4	101.6	120.0	10	30	30 / 60
