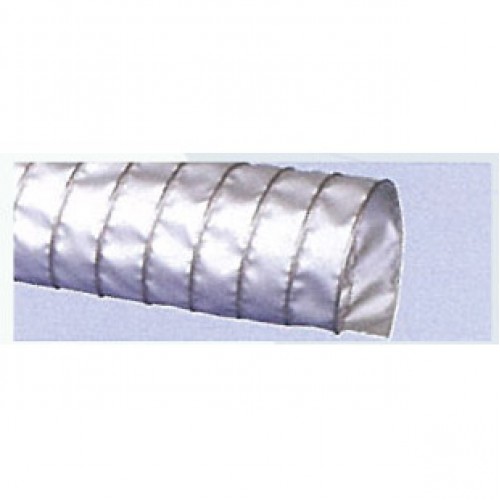

Flexible Silicone Ducting (CL)

Applications:
Suitable for extracting hot vapors, gases, and dust in various industrial settings

Properties:
Excellent temperature resistance, equipped with an external abrasion protection spiral, flame retardant, good compressibility, excellent UV and ozone resistance

Temperature Resistance:
– 60°C to + 300°C

Material:
Silicone-coated glass fabric

Colour:
Silver-gray

Single Length:
Available in 3m and 6m lengths; custom lengths can be requested

Description
Reviews (0)

Description

Technical Data

Dia. (mm)	Weight (kg/m)	Mat. Thickness (mm)	Bend. Rad. (mm)	Max. Work. Press. (bar)	Max. Vacuum (bar)
50	0.40	0.40	30	0.85	0.32
60	0.50	0.40	36	0.68	0.22
76	0.60	0.40	45	0.47	0.14
80	0.62	0.40	48	0.43	0.13
102	0.65	0.40	60	0.30	0.08
110	0.70	0.40	66	0.25	0.07
120	0.72	0.40	72	0.22	0.06
127	0.80	0.40	75	0.21	0.05
152	0.90	0.40	90	0.16	0.04
160	0.94	0.40	96	0.14	0.03
180	1.00	0.40	108	0.12	0.02
203	1.21	0.40	120	0.10	0.02
254	1.70	0.40	175	0.07	0.01
305	2.13	0.40	210	0.05	0.01
350	2.50	0.40	245	0.04	0.04
407	3.10	0.40	280	0.03	0.01
508	4.15	0.40	400	0.02	0.01
