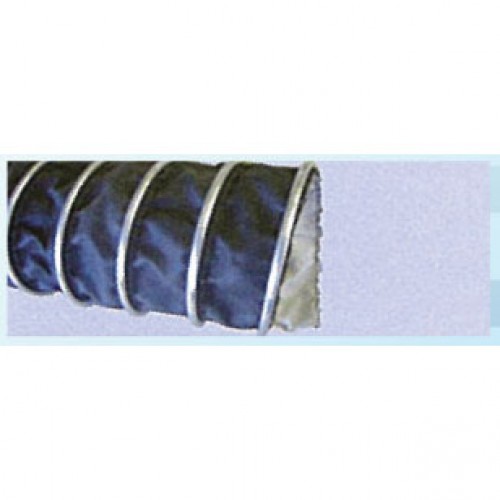

Flexible Hypalon Ducting Hose

Applications:
Suitable for suction of aggressive chemical gases and fumes, particularly in the paint and paper industry, as well as the pharmaceutical and chemical sectors

Properties:
– Excellent resistance to chemicals, weather proof, good compressibility
– Equipped with an outer wear strip for added durability
– Possesses strong mechanical strength
– Flame-retardant
– Exhibits good UV and ozone resistance

Temperature Resistance:
-40°C to +175°C

Special Construction:
Hypalon T EL CL – Conductive (R<10⁶ Ohm)

Material:
2ply,
Inside: Teflon – foil
Outside: Hypalon-coated polyester fabric

Colour:
External: Black
Internal: White

Single Length:
Available in 3 and 6 meters; custom lengths can be requested

Description
Reviews (0)

Description

Technical Data

Dia. (mm)	Weight (kg/m)	Mat. Thickness (mm)	Bend. Rad. (mm)	Max. Work. Press. (bar)	Max. Vacuum (bar)
50	0.50	0.50	30	0.90	0.44
60	0.60	0.50	36	0.78	0.31
65	0.70	0.50	39	0.68	0.26
70	0.70	0.50	42	0.67	0.23
76	0.80	0.50	45	0.62	0.20
80	0.80	0.50	48	0.61	0.17
83	0.90	0.50	50	0.58	0.17
102	1.00	0.50	60	0.51	0.11
112	1.10	0.50	66	0.48	0.09
120	1.10	0.50	72	0.36	0.08
127	1.20	0.50	75	0.33	0.07
140	1.30	0.50	84	0.25	0.06
152	1.30	0.50	90	0.22	0.05
160	1.30	0.50	96	0.21	0.04
180	1.40	0.50	108	0.17	0.04
203	1.60	0.50	120	0.15	0.03
254	2.10	0.50	175	0.10	0.02
305	2.40	0.50	210	0.07	0.01
407	3.80	0.50	280	0.05	0.01
508	4.70	0.50	400	0.04	0.01
