Standco Hose 2 SN | Hydraulic Hose | Standco

A Hydraulic Hose 2 SN, categorized under Hydraulic Hose, used for transmitting hydraulic fluid in machinery.

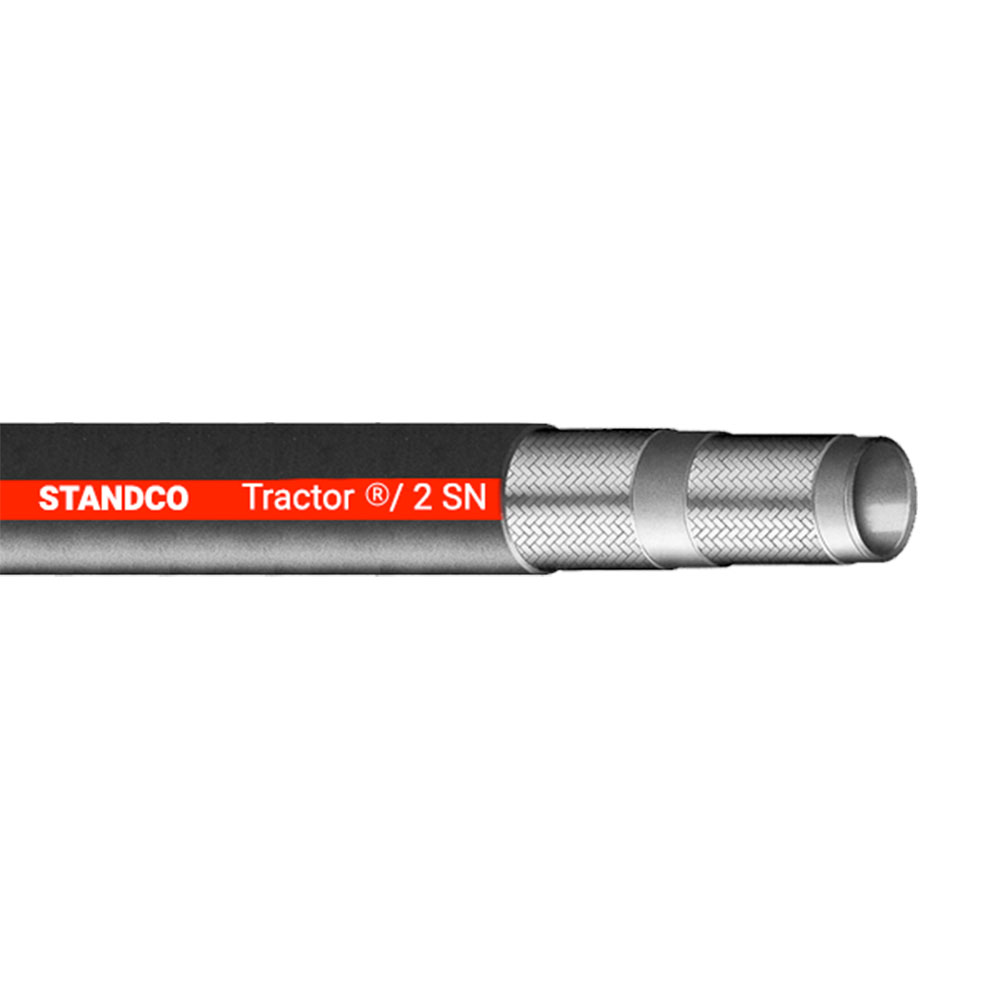

Standco Hose 2 SN

RM6.80 – RM61.95

Main Applications:

Medium-high pressure lines

Recommended Fluids:

Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water

Applicable Specs:

EN 853 2SN – SAE 100 R2AT – ISO 1436 2SN/R2AT

Type Approvals:

ABS, BV (DN 5÷51), DNV, GL, GOST-R, KSR, LR, MSHA

Key Performance:

EN/DIN rated working pressure – Smooth cover FRAS approved (DN 5÷12)

Continuous Service Temperature Range:

-40°f / +212°f -40°c / +100°c

Max. Operating Temperature:

(Intermittent service) 250°f / 121°c

Tube:

Oil resistant synthetic rubber

Reinforcement:Two high tensile steel braidCover: Environment resistant synthetic rubber

Type

Model

Clear

Description

Type	Part Ref.	Inch	ID	OD	W.P		Price (RM)
Type	Part Ref.	Inch	mm	mm	BAR	PSI	Price (RM)
SMOOTH COVER R2	T2SN-04	1/4″	6.2-7.0	14.4-15.2	400	5800	6.80
	T2SN-06	3/8″	9.2-10.1	18.3-19.1	330	4785	9.20
	T2SN-08	1/2″	12.3-13.5	21.5-22.3	275	3988	10.40
	T2SN-10	5/8″	16	25.5	250	3630	13.65
	T2SN-12	3/4″	18.6-19.8	28.6-29.4	215	3117.5	13.65
WRAP COVER R2	T2SN-16	1″	25.0-26.4	36.5-37.1	165	2392.5	19.95
	T2SN-20	1.1/4″	31.4-33	45.3-46.1	125	1812.5	39.90
	T2SN-24	1.1/2″	37.7-39.3	51.4-52.5	90	1305	42.00
	T2SN-32	2″	50.4-52.0	64.4-65.2	80	1160	61.95

Additional information

Type	SMOOTH COVER R2, WRAP COVER R2
Model	T2SN-04, T2SN-06, T2SN-08, T2SN-10, T2SN-12, T2SN-16, T2SN-20, T2SN-24, T2SN-32

Reviews

There are no reviews yet.

Be the first to review “Standco Hose 2 SN”
