Silicone Duct | PVC Hose | Standco

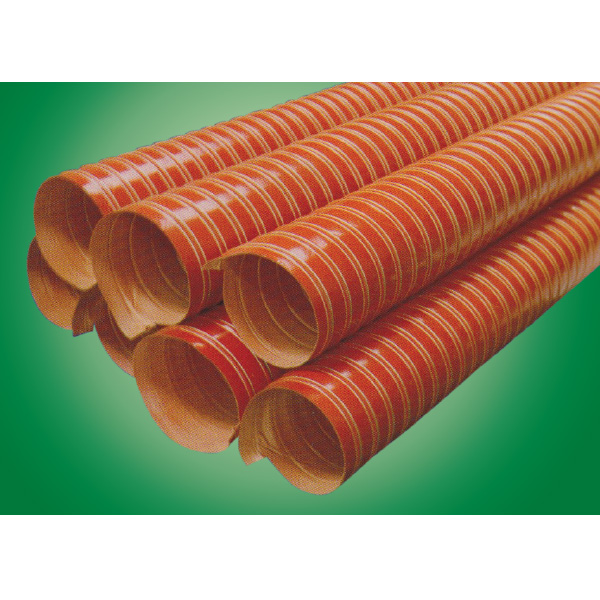

The image depicts a high-quality Silicon Duct used in industrial applications for efficient heat dissipation and temperature regulation.

Silicone Duct

Common Applications:

Suction hose, especially suitable
– For transmission hot air, chemical fumes and industrial fumes
– For printing machines, blowers
– For exhausting gas, engine construction, engine warming, aircraft construction and military construction.

Feature:

– Double-layer of silicone coated glass fibre fabric
– Extremely good heat resistance
– Leak-proof
– Smooth interior
– Highly flexible
– Small bending radius
– link-proof
– Wall thickness: approx 0.4mm

Material:

Wall: Silicon coated glass fiber fabric
Spiral: Spring steel wire
Reinforcement: Glass fiber cord

Temperature Range:

-70°C to +260°C
Short time to +280°C

Description

Product Code	Nominal Inch	I.D.	O.D.	W.P	V.P	C.L	List Price (RM/mt)
Product Code	Nominal Inch	mm	mm	BAR		mt	List Price (RM/mt)
PDH – 2038	1 – ¹/2	38.0	43.0	2.60	0.60	4
PDH – 2050	2	51.0	56.0	2.50	0.51	4
PDH – 2065	2 – ¹/2	63.0	68.0	2.30	0.46	4
PDH – 2075	3	76.0	81.0	2.10	0.42	4
PDH – 2090	3 – ¹/2	89.0	94.0	2.00	0.38	4
PDH – 2100	4	102.0	107.0	1.90	0.35	4
PDH – 2115	4 – ¹/2	114.0	120.0	1.60	0.29	4
PDH – 2125	5	127.0	133.0	1.50	0.26	4
PDH – 2150	6	152.0	158.0	1.30	0.18	4
PDH – 2200	8	203.0	109.0	0.80	0.10	4
PDH – 2250	10	254.0	260.0	0.60	0.08	4

Additional information

Type	PDH – 2038, PDH – 2050, PDH – 2065, PDH – 2075, PDH – 2090, PDH – 2100, PDH – 2115, PDH – 2125, PDH – 2150, PDH – 2200, PDH – 2250
Inch	1 – ½, 2, 2 – ½, 3, 3 – ½, 4, 4 – ½, 5, 6, 8, 10
