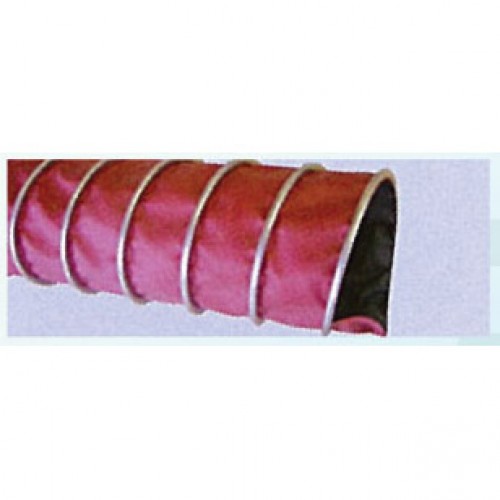

Flexible Viton Ducting Hose (CL)

Applications:
Extraction of chemically aggressive gases and vapors, particularly in the paint and paper industry, pharmaceutical and chemical industries

Properties:
– Good temperature resistance
– Very good chemical resistance
– Excellent UV and ozone resistance
– Good compressibility
– Strong mechanically durability
– Spiral for external abrasion protection

Temperature Resistance:
– 25°C to + 210°C

Material:
Viton-coated polyester fabric

Colour:
Outside: Red
Inside: Black

Single Length:
3m and 6m lengths; custom lengths can be requested

Special Version:
Viton EL CL – electrically conductive (R < 106 Ohm)

This product is currently out of stock and unavailable.

Description

Technical Data

Dia.
(mm)
Weight
(kg/m)
Mat. Thickness
(mm)
Bend. Rad.
(mm)
Max. Work. Press.
(bar)
Max. Vacuum
(bar)
50 0.40 0.40 30 0.90 0.40
60 0.50 0.40 36 0.78 0.28
65 0.50 0.40 39 0.68 0.24
70 0.50 0.40 42 0.67 0.20
76 0.60 0.40 45 0.62 0.18
80 0.60 0.40 48 0.61 0.16
83 0.60 0.40 50 0.56 0.12
102 0.60 0.40 60 0.51 0.10
112 0.70 0.40 66 0.48 0.08
120 0.70 0.40 72 0.36 0.07
127 0.80 0.40 75 0.33 0.06
140 0.80 0.40 84 0.25 0.05
152 0.90 0.40 90 0.22 0.04
160 0.90 0.40 96 0.21 0.04
180 1.00 0.40 108 0.17 0.03
203 1.20 0.40 120 0.15 0.03
254 1.60 0.40 175 0.10 0.02
305 2.10 0.40 210 0.07 0.01
407 3.10 0.40 280 0.05 0.01
508 4.10 0.40 400 0.04 0.01
