Applications:
Suction of hot air and gases in paper processing, plastic industry and vehicle construction
Properties:
– Excellent heat resistance
– Retains flexibility at low temperatures
– Exhibits Very good chemical resistance
Temperature Resistance:
– 70°C to + 250°C (interm. up to +300°C)
Material:

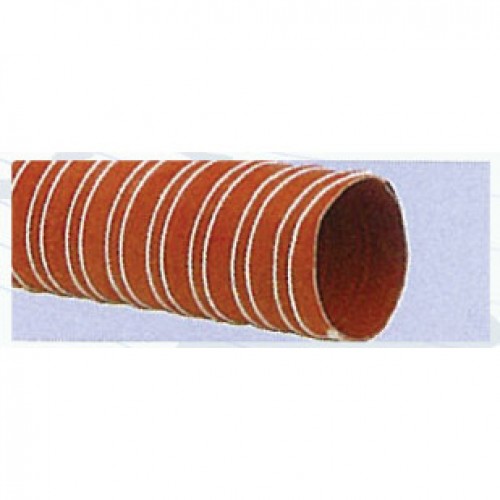

Silicone-coated-glass fabric, double-ply
Colour:
Red-brown
Single Length:
Available in 4m lengths; custom lengths can be requested
Available on Request:
– With spiralfree cuffs
– With PA-fabric
Technical Data
| Dia. (mm) |
Weight (kg/m) |
Mat. Thickness (mm) |
Bend. Rad. (mm) |
Max. Work. Press. (bar) |
Max. Vacuum (bar) |
| 19 | 0.19 | 0.40 | 15 | 2.80 | 0.65 |
| 25 | 0.23 | 0.40 | 15 | 2.80 | 0.65 |
| 32 | 0.26 | 0.40 | 16 | 2.80 | 0.65 |
| 38 | 0.31 | 0.40 | 18 | 2.60 | 0.60 |
| 44 | 0.34 | 0.40 | 21 | 2.60 | 0.56 |
| 51 | 0.36 | 0.40 | 24 | 2.60 | 0.52 |
| 57 | 0.42 | 0.40 | 27 | 2.50 | 0.49 |
| 63 | 0.49 | 0.40 | 31 | 2.40 | 0.48 |
| 70 | 0.53 | 0.40 | 35 | 2.30 | 0.44 |
| 76 | 0.58 | 0.40 | 38 | 2.20 | 0.43 |
| 83 | 0.64 | 0.40 | 42 | 2.10 | 0.41 |
| 89 | 0.69 | 0.40 | 44 | 2.00 | 0.40 |
| 95 | 0.73 | 0.40 | 48 | 1.90 | 0.37 |
| 102 | 0.77 | 0.40 | 52 | 1.90 | 0.35 |
| 121 | 0.94 | 0.40 | 61 | 1.60 | 0.28 |
| 127 | 1.00 | 0.40 | 64 | 1.40 | 0.25 |
| 140 | 1.11 | 0.40 | 70 | 1.30 | 0.19 |
| 152 | 1.20 | 0.40 | 75 | 1.20 | 0.12 |
| 178 | 1.48 | 0.40 | 90 | 1.00 | 0.12 |
| 203 | 1.65 | 0.40 | 101 | 0.70 | 0.09 |
| 254 | 2.14 | 0.40 | 150 | 0.50 | 0.07 |
| 305 | 2.58 | 0.40 | 210 | 0.30 | 0.04 |
